- [Voiceover] Welcome back to SoundBytes Cases.
This is Phil Perera, and in this module we'll discuss
cannulation of the axillary vein using ultrasound guidance.
So why, you might ask, would I want to use
ultrasound to cannulate the axillary vein,
when in effect, the axillary vein is an alternative approach
to cannulation of the subclavian vein on the chest wall?
The axillary vein is a continuation of the brachial vein
onto the chest wall, and becomes a subclavian vein,
as it passes medially under the first rib.
The axillary vein can be well visualized
using ultrasound at this lateral position on the chest wall,
and that's in contrast to the subclavian vein,
where the presence of the bony clavical
makes imaging of the infraclavicular portion
of the subclavian vein difficult.
So in effect, this is a lateral puncture
of the subclavian vein relaying into the axillary vein,
if you're gonna use the right anatomical terminology.
Ultrasound guidance of Axillary Vein cannulation
is now well documented in the medical literature,
although many clinicians remain unaware
that ultrasound can be integrated into this approach.
Two studies document utility
of ultrasound guidance for axillary vein cannulation
with a decreased complication rate,
and the studies are shown below,
the first in 2004 and the more recent in 2012,
both from our colleagues in Great Britain.
In 2011 the CDC came out
with some guidelines for the prevention
of intravascular catheter related infections.
Their recommendations included
using a subclavian vein site, if possible,
rather than internal jugular vein or femoral vein sites,
in adult patients, to minimize the risk of infection,
with a non-tunneled catheter.
They did say to avoid the subclavian site in hemodialysis
and advanced kidney disease patients, to decrease
the risk of subclavian vein stenosis.
They also advocated the use
of ultrasound guidance, if available.
Now let's review the relevant
upper extremity venous anatomy,
that we'll need to know,
to perform successful cannulation of the axillary vein.
Here we see the axillary vein and the axillary artery,
lateral on the patient's chest wall.
Notice here the clavical and the first rib.
As these structures move medially past the first rib,
they become the subclavian vein and artery.
We can see these arteries and veins here,
more medially located on the patient's chest.
Notice also,
we see the internal jugular vein and carotid artery,
moving up and down the patient's neck,
and coming together with the subclavian vessels.
We see the brachiocephalic vein,
which is the confluence of all of these vessels,
as they move down towards the heart,
to become the superior vena cava,
and we remember that, optimally,
we want to place the tip of the catheter,
when performing central venous cannulation,
in the superior vena cava,
and not into the right atrium.
Here's another anatomical image,
showing a perspective from a more lateral orientation
on the patient's chest wall.
Here, we see the axillary vein and axillary artery,
and notice that the normal orientation
of the vein and the artery
is that the artery should be superior to the vein,
although occasionally we have seen some variation,
and it's not unusual for the vein
to be overlapped by the artery, or vice versa.
We see the continuation of the axillary vein and artery,
onto the patient's chest wall, medially,
to become the subclavian vein and artery,
as the vessels pass medial to the first rib.
We also see the internal jugular vein and carotid artery,
and the superior vena cava.
To best image the axillary vein using ultrasound
we'll place the probe on the lateral chest wall.
Here we see the probe applied,
in a longitudinal or long axis orientation
over the top of the axillary vein.
We can image the vessel, using the long axis orientation,
to get a lot of information about the vessel,
but we can look in the short axis orientation,
by turning the probe so the probe indicator
will be towards the patient's right shoulder.
This will cut the vessel in cross section,
making it appear like a circle.
Before performance of the axillary vein cannulation,
we'll want to select the right ultrasound probe for the job.
For this application,
we'll be using a higher frequency 10 MHz linear array probe,
and because we're performing this procedure in a dynamic
or real-time guidance technique,
we'll want to put a sterile sheet or barrier
over the probe, so as to maintain
sterile precautions throughout the procedure.
Note, in some of the upcoming pictures, we don't have
a sterile sheet over the probe, but if we were performing
this in real procedure, we'd want to make sure,
that we have that sterile sheet over the probe.
While someone will run through a pre-procedure checklist,
assessing for relative contraindications
to axillary vein cannulation,
as it's a relatively non-compressible vessel,
coagulopathy is a contraindication
to axillary vein cannulation.
Also, renal disease or need for dialysis
would be relative contraindications to cannulation
of the axillary vein.
We can also run through a more extensive checklist,
known as the 6 point bundle,
which is shown in the upper right,
which emphasizes the use of maximal sterile precautions
for both patient and clinician during the procedure.
Now let's specifically discuss
some of the ultrasound guided approaches
to axillary vein cannulation.
The axillary vein can be visualized
in both short and long axis orientations, using ultrasound.
Imaging of the needle during cannulation of the vein
can then be performed in either orientation,
and there are pluses and minuses of both these orientations,
for cannulation of the vessel.
I generally recommend to start
in the short axis orientation
to introduce the needle,
initially to advance the needle down to the vein.
One may successfully cannulate the vessel in short axis,
however, one thing that can be very helpful
is to flip the probe, once the needle is under the skin,
into the long axis orientation,
to be used to visualize the needle
as it approaches the vessel,
as a long axis orientation shows needle depth
better than the short axis orientation.
So, putting it altogether, here's the probe position
for cannulation of the axillary vein
in the long axis orientation.
Notice here, that the needle would be placed
in an orientation coming in
under the lateral aspect of the probe,
and moving more medially.
Thus we can image the full position of the needle
as it moves down to the axillary vein.
In the next few images,
we'll also show you the placement of the probe
for the short axis cannulation of the axillary vein,
so as to compare both long and short axis imaging.
Here's a few pictures showing the orientation of the probe,
and the placement of the probe
for cannulation of the axillary vein
in a short axis orientation.
Notice here, that we have the probe
in an up and down configuration,
with the indicator dot towards
the patient's right shoulder or superior.
Notice we're placing the needle roughly at about the
midway point underneath the probe.
Now there are some benefits
of starting with the short axis orientation,
namely that it's helpful in orienting the needle,
up or down, superior or inferior,
on the patient's chest wall,
to best aim it towards the axillary vein.
Here are some ultrasound images
of the axillary vein and artery,
taken from the short axis view.
We have the probe marker oriented
towards the patient's head,
thus to the left of the image is superior,
and to the right is inferior.
We notice the axillary artery, the smaller vessel,
superior or towards the left of the image.
We see the larger axillary vein
at about the three centimeter mark,
inferior or towards the right of the image.
Notice towards the back of the image,
we can actually see the lung
sliding up and down as the patient breathes,
at about the five centimeter mark.
Thus it's very important to cannulate the vessel carefully,
and not to pass the needle deep,
past the axillary vein or artery
to cause an inadvertent pneumothorax.
Here's another image of the axillary artery and vein,
taken from a short axis configuration.
Again, we have the probe marker indicator
towards the patient's head.
Superior to the left, inferior to the right.
Thus we see the smaller axillery artery
to the left or superior, and the larger axillery vein
inferior toward the right of the image.
Notice that as we apply probe pressure
down onto the patient's chest wall,
we can actually compress the axillary vein ,
and this is one way of telling vein from artery,
as normally the vein should compress,
as long as there's no thrombus inside it,
and the artery will stay open.
We can see the lung sliding
towards the deeper aspect of the image.
In this ultrasound image,
again taken from a short axis configuration,
we'll use Color Flow Doppler to further differentiate
the axillary artery from the axillary vein.
We note again, that superior is to the left,
and inferior is to the right.
We can see the smaller axillery artery,
with pulsations indicating arterial flow within the lumen.
Notice here, we also see phasic respitory flow
within the axillary vein, corresponding to
inhalation and exhalation by the patient.
Thus, another way of differentiating the axillary artery
from the axillary vein.
Here are some images showing the appropriate positioning
of the probe for long axis cannulation of the axillary vein.
Again we notice that we have a high frequency linear array
probe positioned over the lateral chest wall,
directly over the axillary vein.
We have the needle coming in,
under the long axis of the probe.
Now, I like to have the probe positioned
so that the marker on the probe is oriented lateral.
Thus, the needle will come in underneath the indicator
and progress directly underneath the probe
as it courses from the skin down to the axillery vein.
It's important to keep the needle and plane
underneath the probe at all times,
so that it can be visualized as it goes down to the vessel.
Here's a long access ultrasound image of the axillary vein
as it courses from lateral to the left of the image
to medial to the right of the image.
Notice that the axillary vein appears
as a tubular structure, at about the three centimeter mark.
Now let's take a look at the axillery artery
using B-mode or greyscale sonography.
We can see the axillary artery
arching from lateral to medial
across the patient's chest wall,
and we note the pulsations within the lumen,
indicative of an arterial structure.
We can also see the thoracoacromial trunk
coming off medially off the axillery artery.
Next, we'll use Color Flow Doppler
to further differentiate venous structures from arterial.
This will be the axillary vein and we can tell this,
as it does not have that constant arterial pulsations
within the lumen.
Notice that rather,
it has the phasic respitory variation of flow
within its lumen, as indicative of a venous structure.
We can also see the thoracoacromial trunk
coming off medially.
Let's contrast that last ultrasound clip with
this one, showing the axillary artery, using
Color Power Flow Doppler.
Color Power Flow Doppler shows amplitude of flow,
and we can see that fast flow is very yellow,
we can see the faster flow within the inner part of the
lumen of the vessel.
But notice that we have here
the characteristic arterial pulsations,
that differentiate from venous pulsations.
Now let's discuss the micropuncture technique
for central venous cannulation.
The micropuncture technique has a lot of advocates
when talking about cannulation of the axillary vein,
as it utilizes a smaller 21 gauge needle
for the initial puncture of the axillary vein.
This is in contrast to a traditional central line kit,
which uses and 18 gauge needle, a much larger needle,
for that initial vessel cannulation.
One can then use
this smaller 21 gauge needle to cannulate the vessel,
and place a guidewire into the vessel.
A larger catheter can then be inserted
over the guidewire into the vessel.
Using these smaller diameter needles
is potentially safer for deeper puncture
of vessels like the axillary vein
to avoid potential complications.
In this video clip, we'll watch cannulation
of a vessel using a short axis approach.
This is a phantom which simulates the human body
and we can see that as we place the probe
in the short axis orientation,
the vessel appears as circular end-on.
Notice here, that we can see the echogenic tip of the needle
coming down to the vessel, permeating the interior wall,
and entering into the lumen of the vessel.
So the short axis plane allows
better lateral guide of the needle path,
and is a good starting position
for cannulation of an axillary vein.
In this video clip, we'll use the long axis approach
for cannulation of a central vein.
Here we're using some new technology,
known as MBE technology,
that is on a lot of the Sonosite machines.
What we see here is the tip of the needle
is much more echogenic.
We aim the needle towards the dotted line,
which is coming from right to left on the image here.
Now let's watch the needle coming in from left to right,
and we can see that,
as the needle is in plane with the probe
in the long axis approach,
we can see the full extent of the needle
as it travels from superficial down
to permeate the anterior wall of the vessel
and enter into the vessel lumen.
Thus the long access plane allows
a much better guide to needle depth
and allows you to gauge where the tip of the needle is
at all times.
That's why I generally start with a short axis approach
and then flip to long axis.
In this video clip, we'll look at a real-time
axillary vein cannulation in a real patient.
Here we see the needle coming down from left to right,
we're using the long axis view.
Notice that the images are not quite as crisp,
because the probe is slightly off-axis to the vessel.
What we can see here is the tip of the needle
as shown by a small arrow, coming down, pushing down
on that anterior wall of the axillary vein,
and then entering into the vessel lumen.
So in this case we were able to successfully cannulate
the axillary vein, although the images are
not quite as clear as in the phantom,
and this is one pitfall from using the long axis approach,
that you must be completely in plane with the needle
throughout its entire path down to the vessel.
Here's another clip in the long axis orientation,
showing a successful cannulation of an axillary vein.
We can see here the needle pushing down
on that anterior wall, and then entering
into the vessel lumen.
Now one potential pitfall is that, occasionally,
the vessel can be pushed down, the anterior wall can tent
towards the posterior wall, as you push the needle down.
So have patience, and occasionally,
a slight pull-back with the needle
will loosen that tissue, and allow you
to free the needle tip within the vessel lumen.
But again, the teaching point here
is that the long axis view is great
for assessment of needle depth at all times.
Another use of ultrasound and the long axis technique
which I find very helpful,
is to assess that the guidewire
is safely within the position,
within the lumen of the axillary vein.
Here we note the needle coming down from left to right,
and we can see the guidewire passing
through the tip of the needle,
moving down the axillary vein,
down towards the superior vena cava.
This can be very helpful in assessing that the guidewire
is indeed safely within the axillary vein,
prior to placement of the plastic catheter.
While standard practice would dictate
that after placement of a central line,
one would obtain a chest radiograph
to look for the placement of the tip of the catheter
in the superior vena cava.
A quick and easy way of assessing
that the catheter is indeed inside the superior vena cava
is to use a saline flush.
Here we're flushing the saline into the catheter
and we can note the presence of bubbles
within the right side of the heart,
indicating that the catheter is indeed
within the vessel lumen, so a quick and easy way,
right at the bedside, prior to obtaining a chest radiograph.
In conclusion, thanks for joining me
for this SoundBytes module,
going over ultrasound guided approaches
to axillary vein cannulation.
Ultrasound guidance of axillary vein cannulation
is now well supported in the medical literature,
and in fact, the CDC guidelines from 2011
advocate placement of central lines
within the axillary and subclavian veins,
to lower the incidence of bloodstream-associated infections.
As we discussed, the micropuncture technique,
using a smaller needle
for the initial cannulation of the axillary vein,
can be very helpful for this approach.
We can then place a guidewire and larger catheters
into the vessel more safely.
So clinicians should strongly consider
this alternative approach,
using ultrasound guided approaches into the axillary vein,
when determining the location
for central venous catheter placement in their patients.
So, I hope to see you back, as SoundBytes continues.

Brightcove ID

5508139234001

https://youtube.com/watch?v=zxmkrrq1P3M

Body

3D How To: Interscalene Nerve Block

Read more about 3D How To: Interscalene Nerve Block

/sites/default/files/Interscalene_edu00493_thumbnail.jpg

3D animation demonstrating an ultrasound guided interscalene nerve block.

Clinical Specialties

Anesthesiology (Regional)

Media Library Type

How To Videos

Subtitles

- [Voiceover] A linear array transducer
with a nerve exam type is used to perform
an ultrasound-guided, interscalene nerve block.
The target depth is approximately one to three centimeters
in an 80-kilogram adult.
The patient is positioned in a 45-degree reclining position
with a pillow under their head
and the head turned toward the contralateral side.
The examination begins by finding
the supraclavicular region of the brachial plexus
as a landmark technique.
The transducer is placed posterior
to the midpoint of the clavicle
with the orientation marker
directed to the patient's right at a three-o'clock position.
The subclavian artery is seen
as a round, pulsatile structure
superior to the bright reflection of the first rib.
The pleura is seen as a bright, hyperechoic reflection
deep to or at the same depth as the first rib.

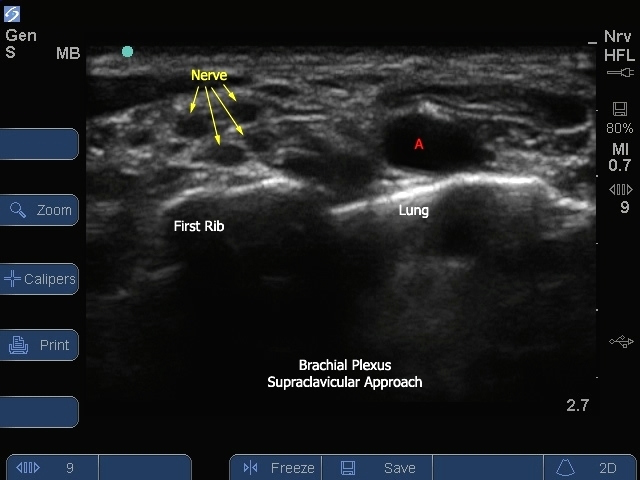

The nerves of the brachial plexus are posterior or superior
to the subclavian artery.
The nerves appear as hypoechoic dark circles
within the bright hyperechoic fascia
surrounding the brachial plexus.
To identify the interscalene region of the brachial plexus,
slowly slide the transducer up the neck.
The interscalene muscles will frame the nerves
within the interscalene groove.
The nerves will change in shape
from a grape-like cluster in the supraclavicular region
to a chain-link appearance in the interscalene groove.
The C5 and C6 nerve roots appear as three circles.
The hypoechoic pulsatile carotid artery
will appear medial to the anterior scalene muscle.

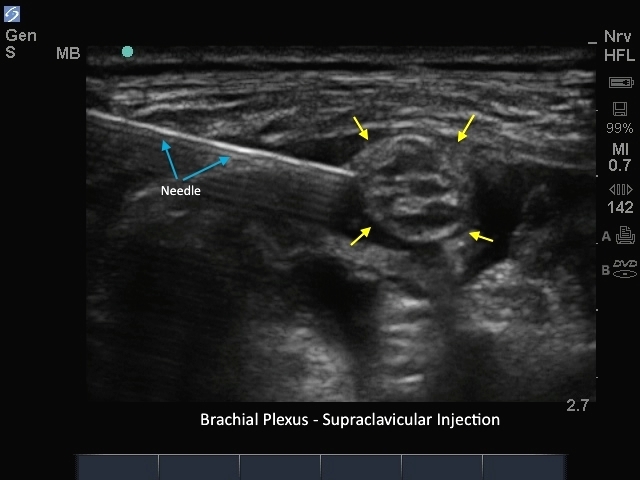

The needle can be advanced
using an in-plane or out-of-plane technique.
For an in-plane technique,
the needle is positioned one to two centimeters
lateral to the transducer and advanced under the transducer
until the tip is just posterior to or between
the C5 and C6 nerve roots.
The local anesthetic is injected incrementally
close to the nerve roots.
The needle can be redirected
if the spread of local anesthetic is not deemed adequate.
It is not necessary to have local anesthetic
anterior and posterior to the nerve roots.
Posterior spread only of local anesthetic is effective.

Brightcove ID

5508123555001

https://youtube.com/watch?v=wAABZF1aSO8

3D How To: Infraclavicular Nerve Block

Read more about 3D How To: Infraclavicular Nerve Block

/sites/default/files/Infraclavicular_edu00493_thumbnail.jpg

3D animation demonstrating an ultrasound guided infraclavicular nerve block.

Clinical Specialties

Anesthesiology (Regional)

Media Library Type

How To Videos

Subtitles

- [Voiceover] A linear array transducer
with a nerve exam type is used to perform
an ultrasound-guided, infraclavicular regional nerve block.
The target depth is approximately three to four centmeters
in an 80 kilogram adult.
The patient is positioned supine
with the arm abducted 90 degrees
and the elbow bent 90 degrees
to move the clavicle posterior,
and permit a shallow angle of needle insertion.
The patient's head should be rotated
toward the contralateral side.
The transducer is placed on the chest in a paramedian plane,
inferior to the midpoint of the clavicle
with the orientation marker directed to the patient's head.
The axillary artery is seen as
a dark, round pulsatile structure with a hyperechoic wall
inferior to the pectoralis major and minor muscles.
The axillary vein lies beside the axillary artery
and collapses with compression.
The nerve cords appear as hyperechoic circles
with a honeycomb appearance
within the bright hyperechoic fascia of the brachial plexus.
The transducer is slowly moved in a lateral direction,
following the course of the axillary artery.
The nerves will split into a lateral,
medial, and posterior cord.
The optimum position of the transducer
for the infraclavicular nerve block
is as lateral as possible.
The needle is positioned two centimeters cephalad
to the transducer and advanced using an in-plane technique.
The needle path is directed over the clavicle
and through the pectoral muscles.
The initial endpoint for the needle is
immediately posterior to the midpoint of the artery.
The spread of local anesthetic should be observed.
Supplemental injections can be made anterior to the artery
to deposit local anesthetic
around the lateral and medial cords if required.

Brightcove ID

5745561363001

https://youtube.com/watch?v=8xRDVLKb5BY

3D How To: Axillary Nerve Block

Read more about 3D How To: Axillary Nerve Block

/sites/default/files/Axillary_edu00492_thumbnail.jpg

3D animation demonstrating an ultrasound guided axillary nerve block.

Clinical Specialties

Anesthesiology (Regional)

Media Library Type

How To Videos

Subtitles

- [Voiceover] A linear array transducer with a nerve
exam type, is used to perform an ultra sound
guided axillary regional nerve block.
The target depth is approximately one to two
centimeters in an 80 kilogram adult.
The patient is positioned supine with the arm
abducted 90 degrees, and the elbow bent 90 degrees.
The transducer is placed high as possible in the axilla,
with the orientation marker directed to the patient's head.
Slowly slide the transducer in a lateral to medial
direction to identify the axillary artery.
The axillary artery is a dark, round, pulsitile structure
with a hyperechoic wall.
The axilalry veins lie around the periphery of the artery
and are easily compressed.
Slide the transducer up the arm to a proximal
position, so the terrace major muscle,
which helps control the distribution of local
anesthetic during injection, is postero-medial
to the artery and nerves.
The biceps and coracobrachialis muscles, will appear
lateral to the artery.
The median, ulner, and radial nerves appear as
hyperechoic circles, with a honey comb appearance
surrounding the artery.
The nerve positions will vary around the artery.
The transducer is slowly moved laterally over
the biceps and corocobrachealis muscles.
The musculocutaneous nerve can be seen between
these muscles as a small, bright, hyperechoic circle
or triangle.
The needle is positioned one to two centimeters
lateral to the transducer, and advanced using
an in plane technique.
The needle path is directed through the biceps muscle,
toward the musculocutaneous nerve.
The initial end point for the needle is immediately
beside the musculocutaneous nerve, where three
to five CCs of anesthetic should be injected.
The needle is then advanced to a position immediately
post-terior to the artery.
As local anesthetic is injected, the terrace muscle
is pushed down, and the local anesthetic should
spread medial and lateral underneath the artery.
The needle can be advanced through hydrodisection
to facilitate appropriate spread of local anesthetic.
Finally, the needle is withdrawn and redirected anterior
to the artery.
Local anesthetic should be injected over the artery
to finish with a circumferential spread of local anesthetic
around the artery.

Brightcove ID

5765653161001

https://youtube.com/watch?v=3MBmUFMoH7w

3D How To: Supraclavicular Nerve Block

Read more about 3D How To: Supraclavicular Nerve Block

/sites/default/files/Supraclavicular_edu00495_thumbnail_.jpg

3D animation demonstrating an ultrasound guided Supraclavicular nerve block.

Clinical Specialties

Anesthesiology (Regional)

Media Library Type

How To Videos

Media Library Tag

Subtitles

- [Voiceover] A linear array transducer with
a nerve exam type is used to perform an ultrasound guided
supraclavicular regional nerve block.
The target depth is approximately one to three centimeters
in an 80 kilogram adult.
The patient is positioned in a 45 degree
reclining position with a pillow under their head
and the neck exposed on the operative side.
The patient's head is rotated toward the contralateral side.
The examination begins by finding the supraclavicular region
of the brachial plexus as a landmark technique.
The transducer is placed posterior
to the midpoint of the clavicle at an acute angle
with the orientation marker directed
to the patient's right at a ten o'clock position
with the transducer aimed into the thorax.
The subclavian artery is seen as a round pulsal tile
structure superior to the bright reflection
of the first rib.
The plura is seen as a bright hyperechoic reflection
deep two, or at the same depth as the first rib.
The nerves of the brachial plexus are posterior
or superior to the subclavian artery.
The nerve trunks appear as hypoechoic dark circles
within the bright hyperechoic fascia of the brachial plexus.
Colored doppler imaging may be used
to identify smaller arterial branches
running through the brachial plexus
or lying in the path of needle advancement.
The needle is positioned one to two centimeters
lateral to the transducer, and advanced
using an in plane technique.
The initial end point of the needle
is just posterior to the artery
immediately above the first rib.
It is important to distinguish the plura
from the first rib to avoid a pneumothorax.
The local anesthetic is injected
incrementally close to the nerves.
The needle can be redirected towards
the upper trunks of the brachial plexus
if the spread of local anesthetic is not deemed adequate.

Brightcove ID

5750031878001

https://youtube.com/watch?v=9vW1uo7mKDc

Body

3D animation demonstrating an ultrasound guided Supraclavicular nerve block.

How To Perform An Interscalene Nerve Block

Read more about How To Perform An Interscalene Nerve Block

/sites/default/files/youtube_0Cboqf1Qnhc.jpg

Dr. David Auyong reviews scanning techniques and sonographic landmarks for an interscalene brachial plexus nerve block.

Media Library Type

How To Videos

Subtitles

- The interscalene block is used
for shoulder surgery and clavicle surgery.
So, to start the interscalene block,
proper positioning is very important.
The best way to get to the interscalene block
is to have the patient sitting up
about 30 or 45 degrees.
Next, we turn the patients head away
from the shoulder to the opposite side.
This gives us a lot of room to put the probe
and have our hands come from the posterior side.
The proper approach to the interscalene block
is to have the needle approach from the posterior side.
This avoids the phrenic nerve and allows us
to not injure the phrenic nerve with our needle approach.
So, for the interscalene block,
we usually use a high frequency linear probe.
The high frequency linear probe is best
for structures that are superficial.
Usually, in the interscalene groove,
the interscalene nerves or the roots
of the brachial plexus lie very shallow.
Usually, two centimeters or less
even in large patients.
So, to start, I usually set my ultrasound depth
to approximately three centimeters
in an average sized patient.
I also set the frequency to general setting
or resolution setting, in skinnier patients.
To get to the interscalene groove
the best place to start is in the supraclavicular region.
The reason we start in the supraclavicular region
is that it allows us to use
a vascular structure to find the nerves.
So, when I start, I put the probe on
just posterior to the clavicle
aiming straight down the body.
In this area we will see a pulsating artery
sitting on the first rib,
as well as some pleura, possibly.
Posterior to the pulsating subclavian artery
are your nerves.
Your nerves in this setting are hyperechoic, or bright,
and have many fascicles, or dark circles, within 'em.
These are the nerves that are gonna become
the roots of the brachial plexus
as we trace backwards up the neck.
Now, to find the interscalene groove
we take our pulsating artery,
look for the nerves posterior,
and we're gonna slide the probe back up the neck.
The probe slides up the neck as well as tilts
as we move the probe up the neck.
Here, we are moving up the neck
following the upper trunk, this most superior nerve,
as we go up the neck those nerves will become
more dark and larger fascicles, or dark circles.
Now, we are up at the interscalene groove.
The interscalene groove is found by identifying
the anterior scalene muscle,
anterior here is to the left of the screen
and the middle scalene muscle
posterior to the right of the screen.
The nerves are hypoechoic, or dark, surrounded by
hyperechoic, or bright, fascial covering.
Here, we are looking at the C5 and C6 nerve roots
in the interscalene groove.
If I slide the probe anterior,
we get a carotid artery
with a internal jugular vein on top of it.
The sternocleidomastoid is above these structures.
As I slide posterior, we have out anterior scalene,
our interscalene groove,
and posterior is our middle scalene.
Here is a very good picture
of the nerve roots here and they are
sandwiched between the anterior scalene on the left
and the middle scalene on the right.
So, now, we are looking specifically
at the C5 and C6 nerve roots.
Our needle approach comes from posterior.
Usually, I start the needle
approximately one centimeter away from the probe.
In this image we see the interscalene groove
with the C5, C6 nerve roots.
The needle is passing through the middle scalene muscle.
You'll see an injection on the posterior side
of the brachial plexus.
The needle will be then moved
underneath the C6 nerve root.
An injection will be given now.
You can see the local anesthetic spreading
on the anterior side of the brachial plexus,
between the brachial plexus and the anterior scalene muscle.
And the needle is positioned below the C6 nerve roots.
I usually deposit about
20 to 30 milliliters of local anesthetic.
Some people use less to avoid
paralysis of the phrenic nerve, temporarily,
from the local anesthetic.

Brightcove ID

5508105692001

https://youtube.com/watch?v=0Cboqf1Qnhc

Body

Dr. David Auyong reviews scanning techniques and sonographic landmarks for an interscalene brachial plexus nerve block.

Subscribe to Plexus

Search

X-Porte: Interscalene Nerve 1

X-Porte: Interscalene Nerve 1

X-Porte: Interscalene Nerve

X-Porte: Interscalene Nerve

S Series: Brachial Plexus Infraclavicular

S Series: Brachial Plexus Infraclavicular

M-Turbo: Brachial Plexus Supraclavicular Level - 2 Post Injection

M-Turbo: Brachial Plexus Supraclavicular Level - 2 Post Injection

Case: Axillary Vein Cannulation

Case: Axillary Vein Cannulation

3D How To: Interscalene Nerve Block

3D How To: Interscalene Nerve Block

3D How To: Infraclavicular Nerve Block

3D How To: Infraclavicular Nerve Block

3D How To: Axillary Nerve Block

3D How To: Axillary Nerve Block

3D How To: Supraclavicular Nerve Block

3D How To: Supraclavicular Nerve Block

How To Perform An Interscalene Nerve Block

How To Perform An Interscalene Nerve Block

Search
